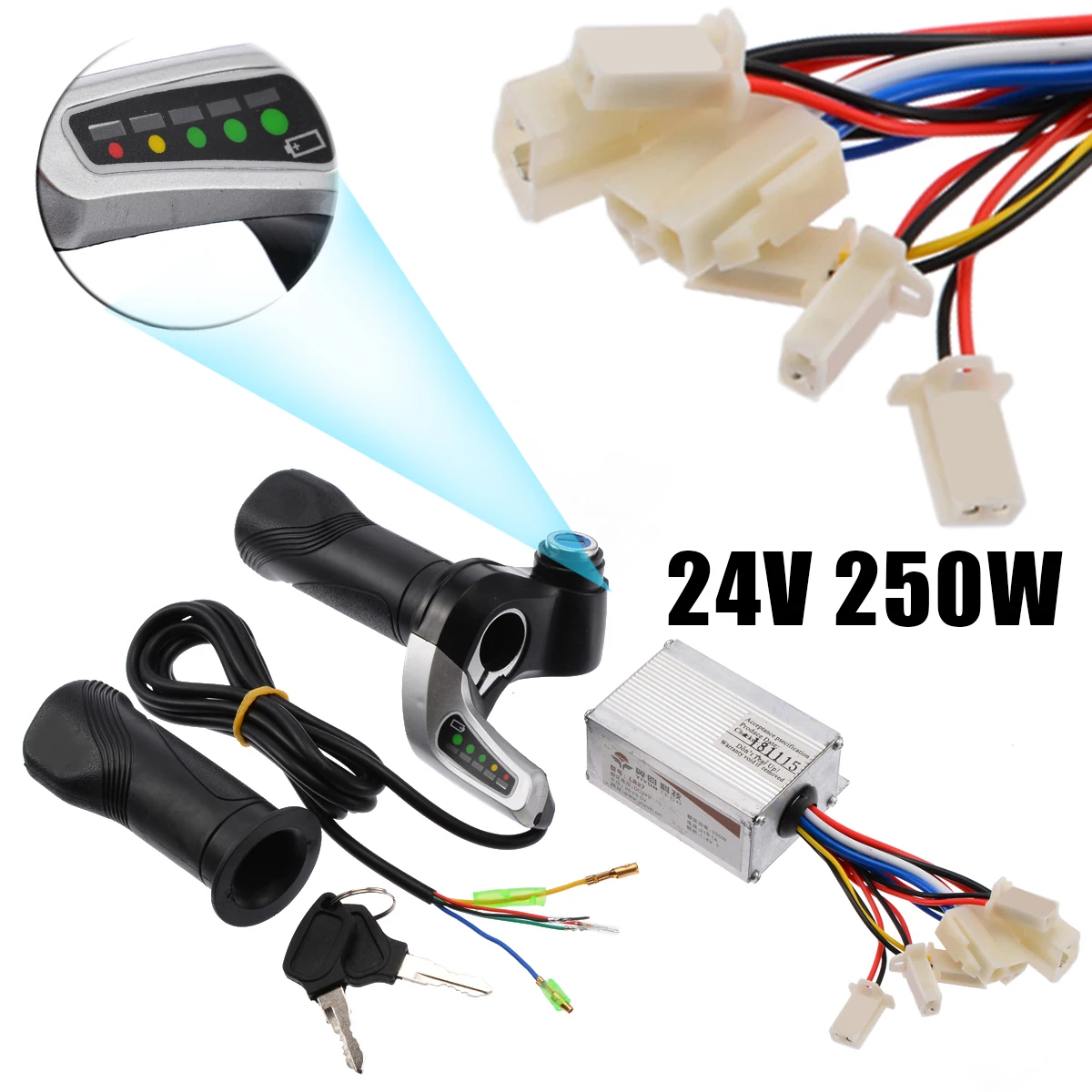

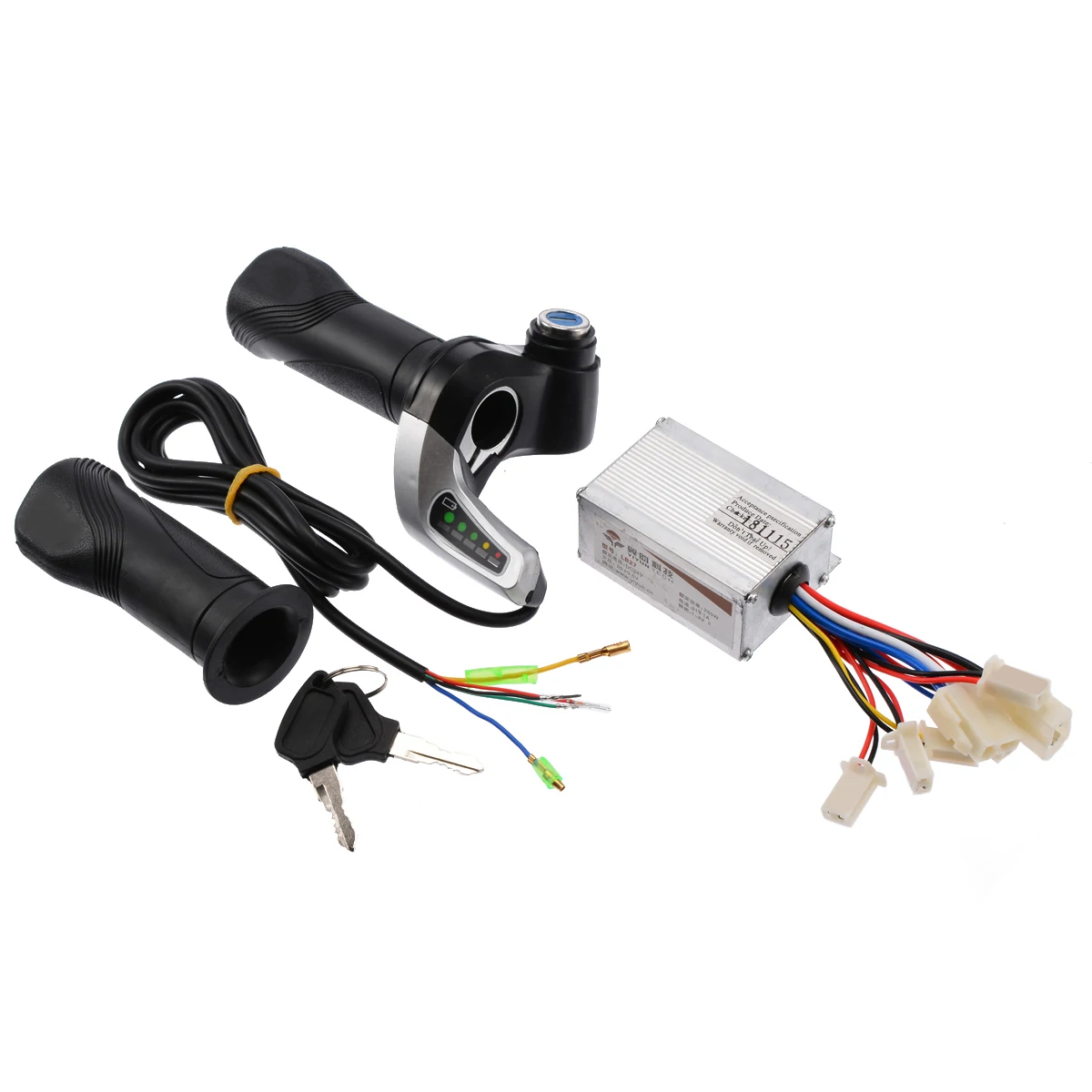

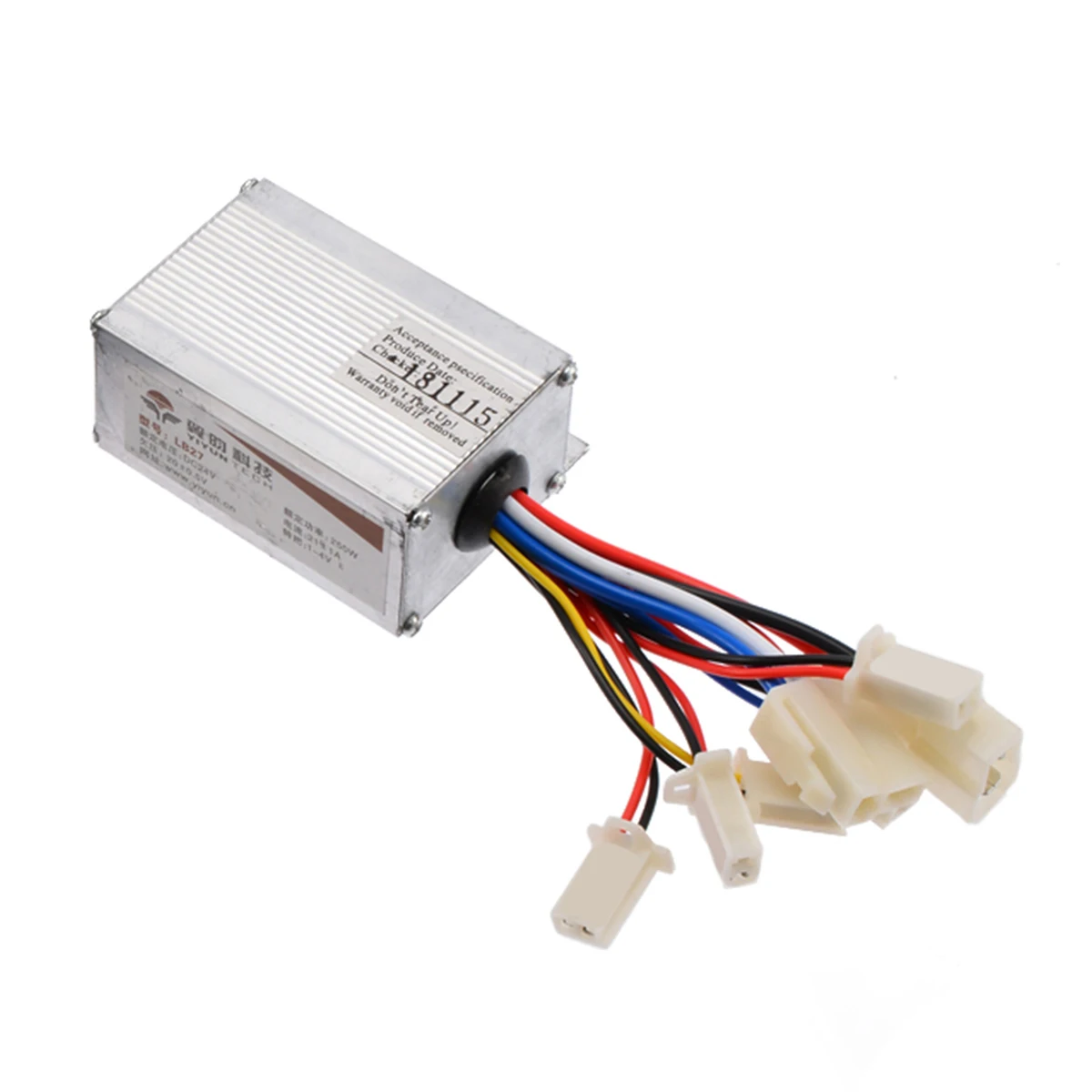

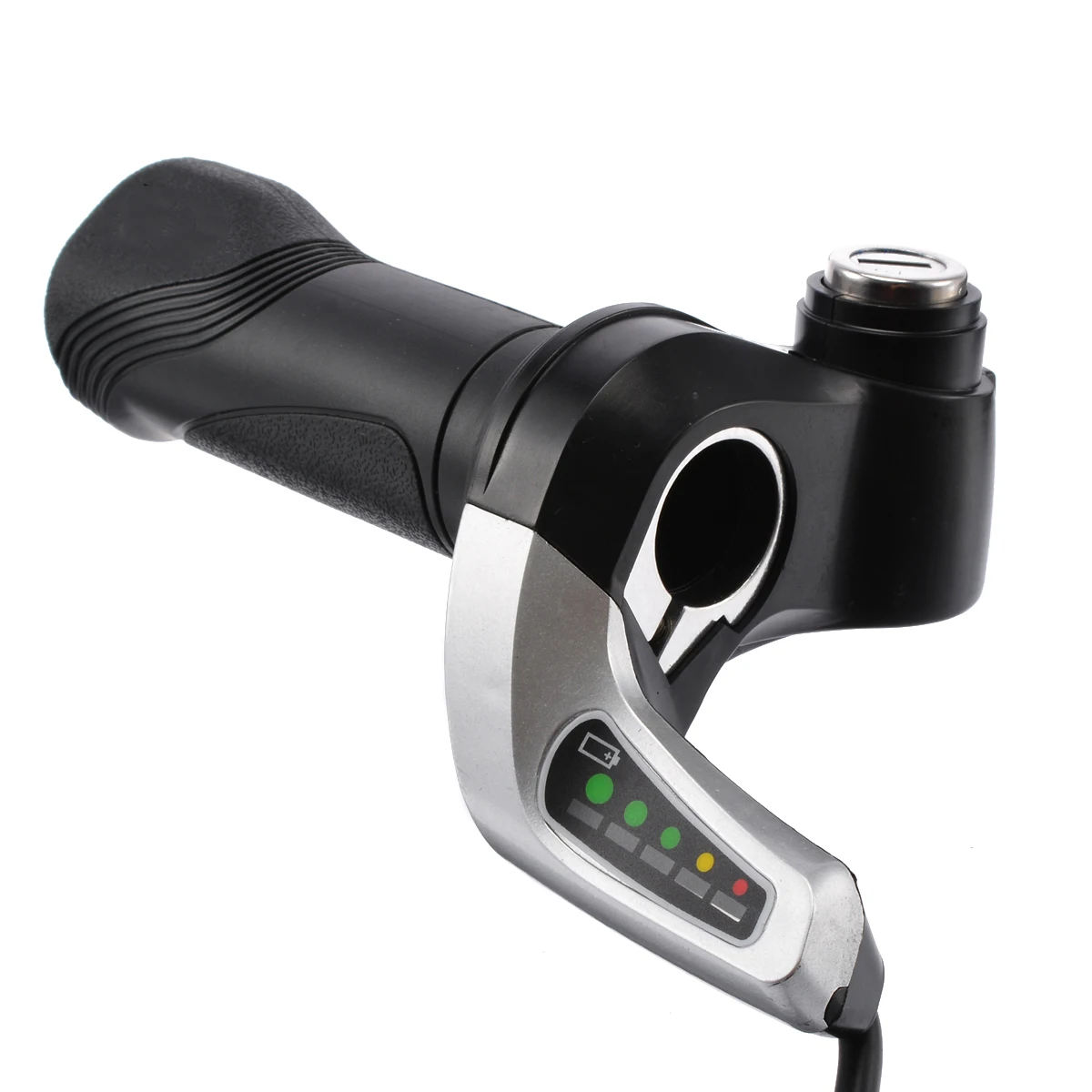

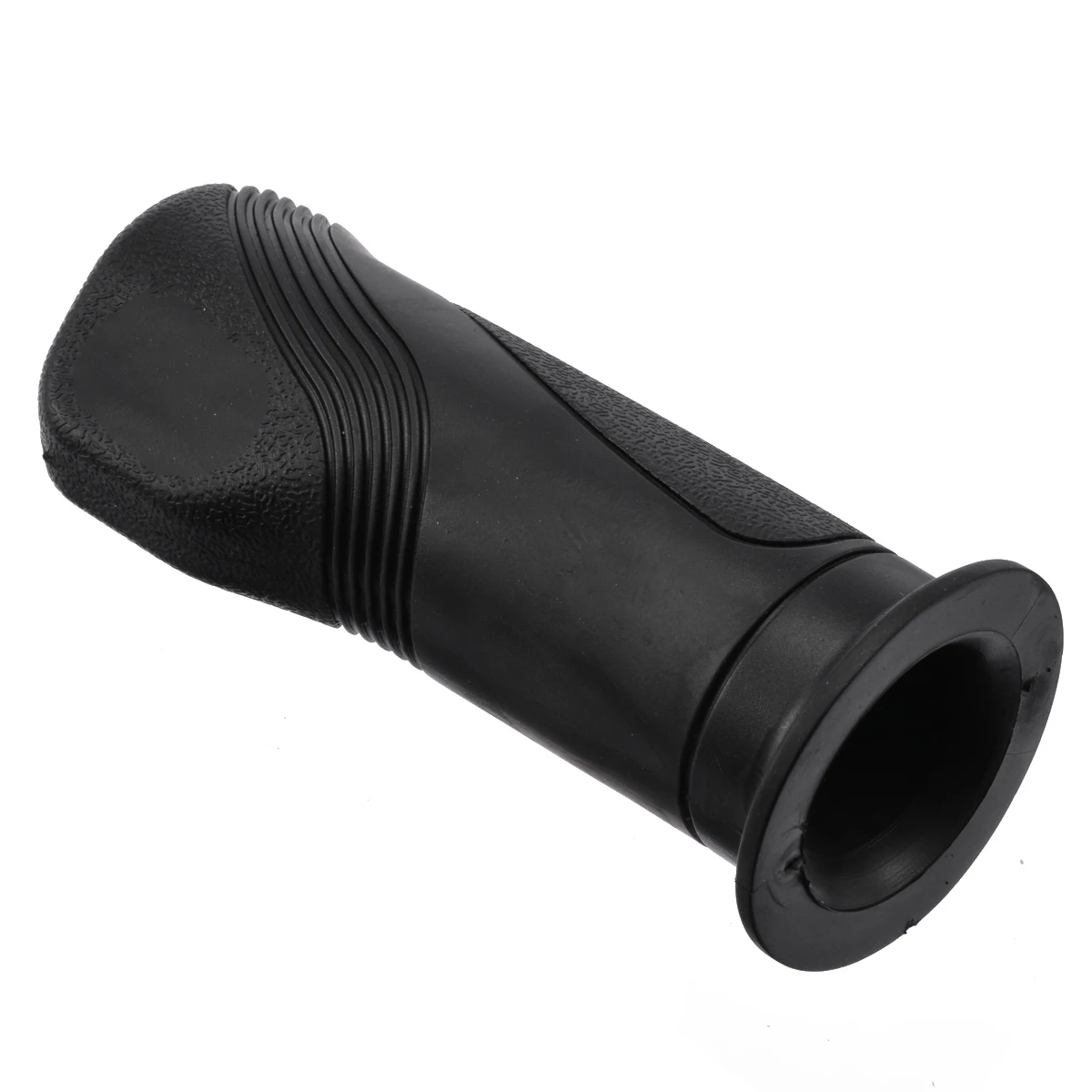

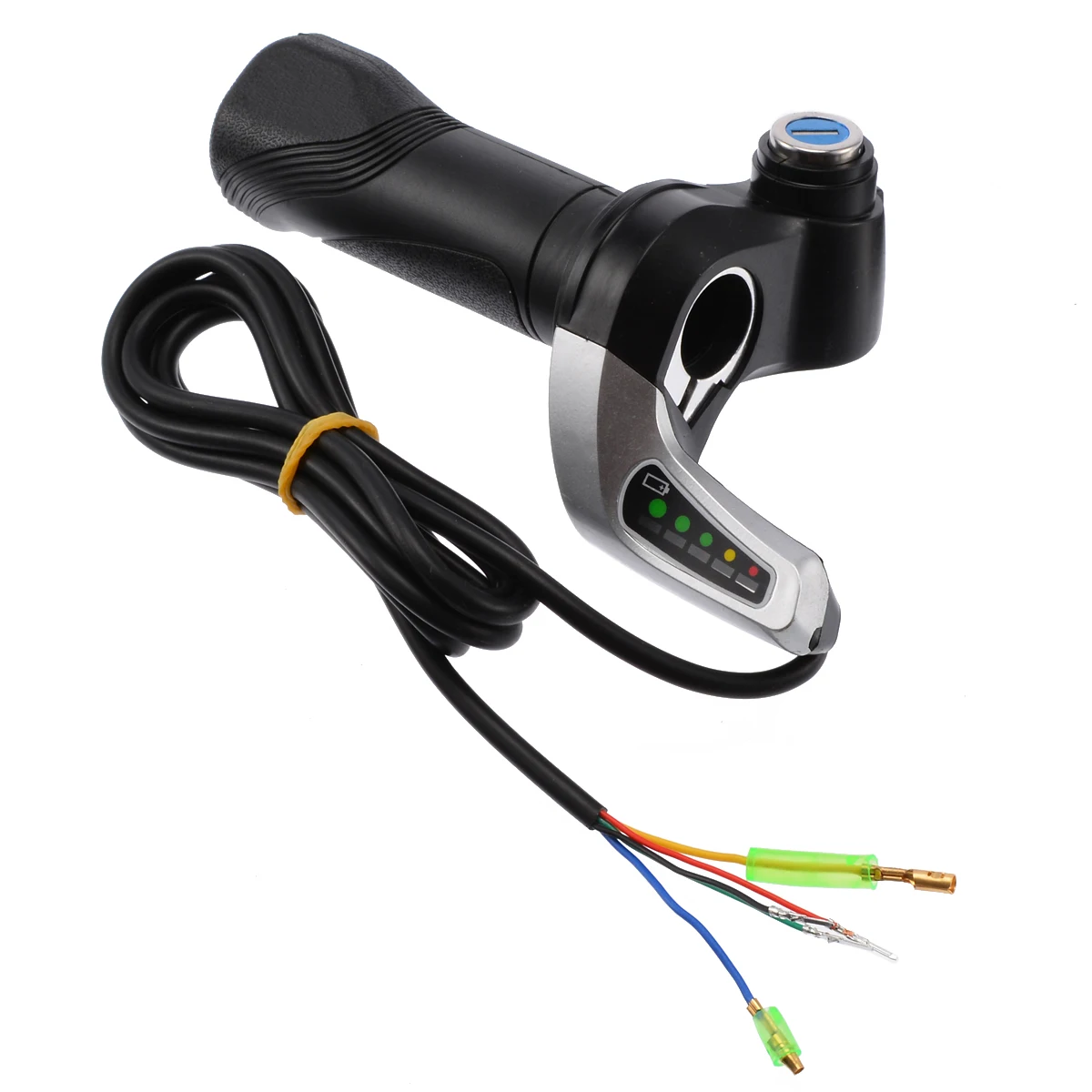

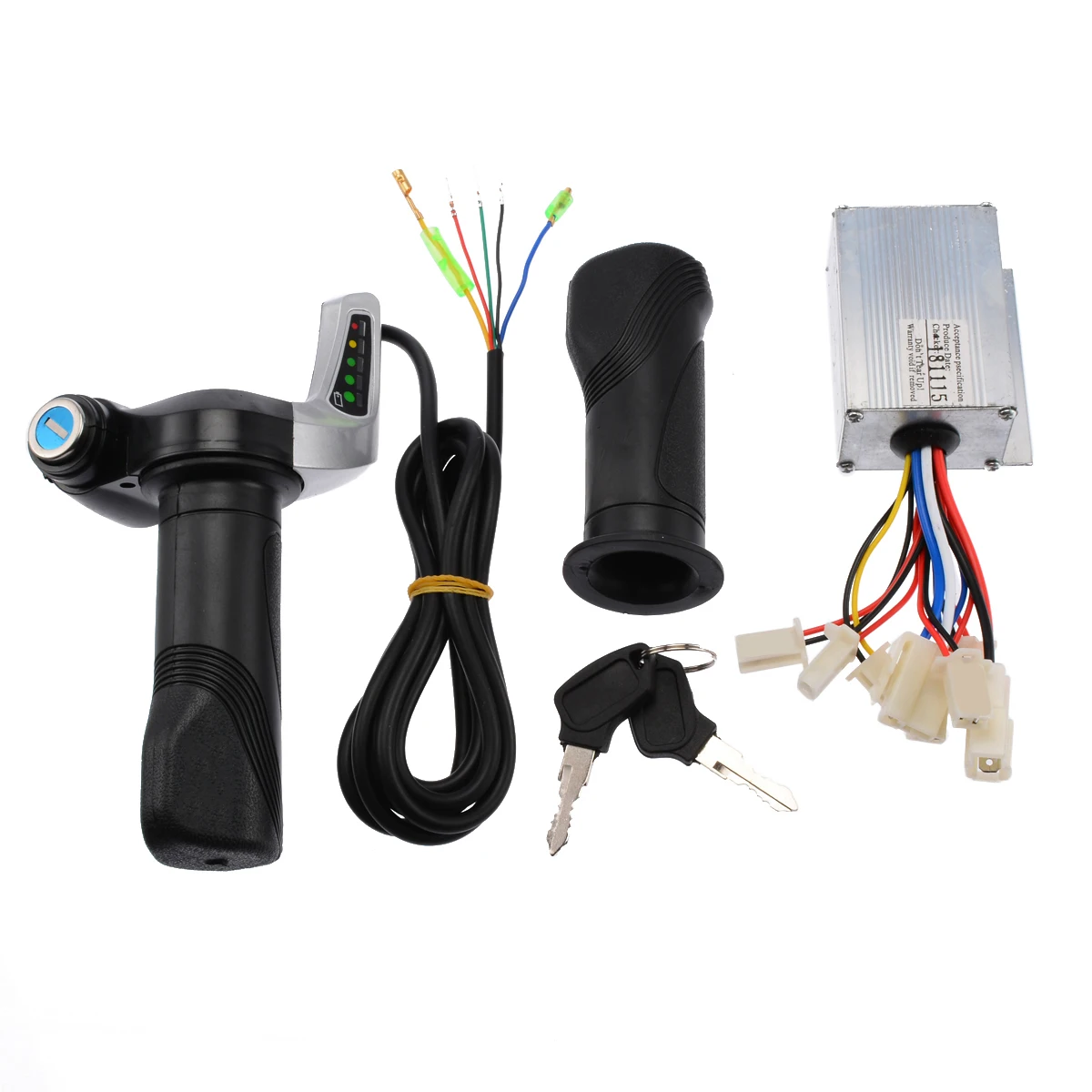

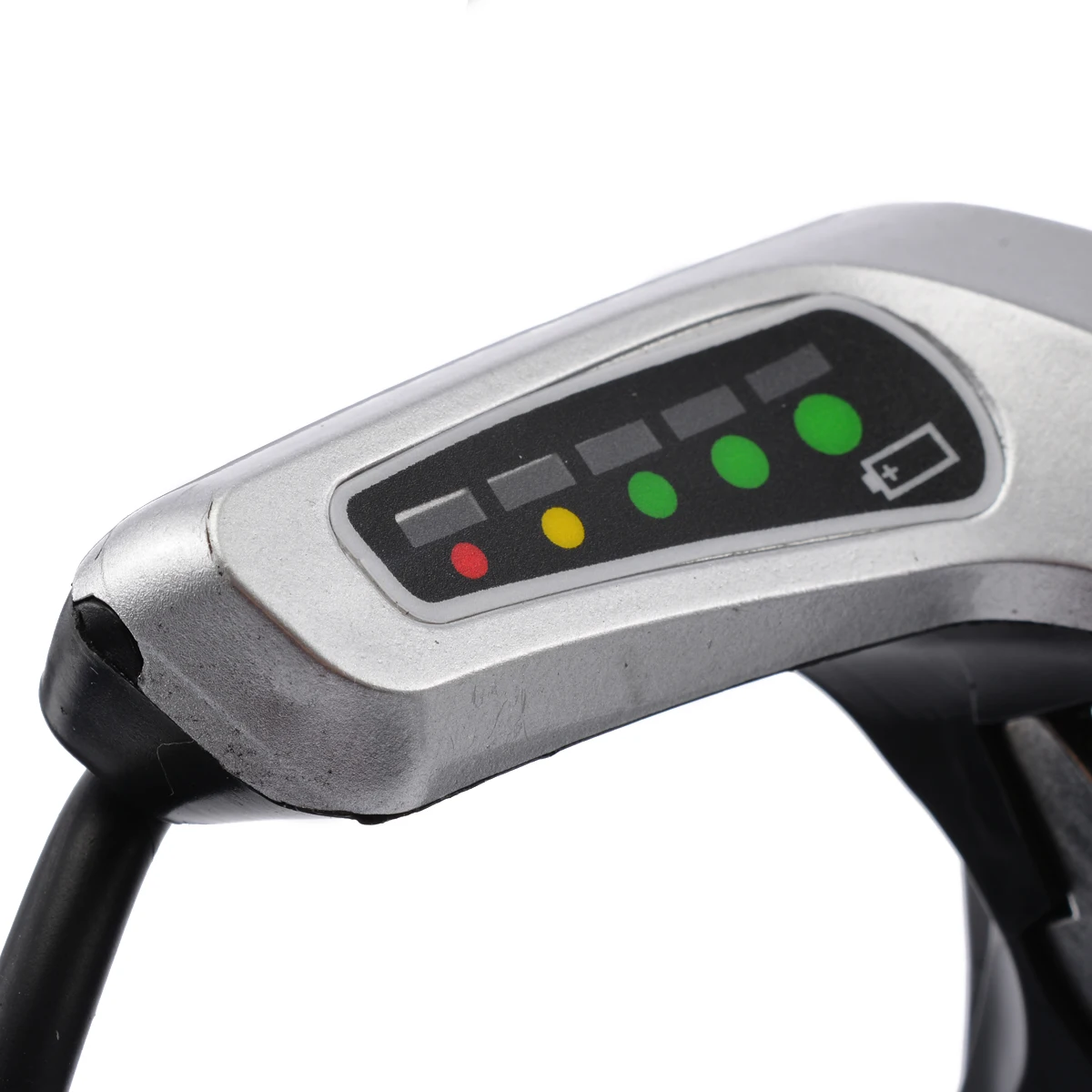

SF0006507 Specification: ■ Brand new Brushed Controller: ■ Size: 8 cm x 6.5 cm / 3.1" x 2.6"(L x W) ■ Rated voltage: DC 24 V ■ Current limit : 21A ■ Rated power: 250 W ■ Matching motor: DC brushed motor ■ Under Voltage Protection: 20V Throttle: ■ Size: (Lx D) 10 cm x 2 cm / 3.9" x 0.8" ■ Throttle Works Voltage: DC5V ■ Speed Adjusting Signal:0.8V～4.3V ■ Power display Voltage: DC 24V ■ Power display: ■ Normal: 23V above, 3 Led Green, ■ Half: 23V ~ 20V, Led Yellow, ■ Empty: 20V or less, Led Red ■ Rotation angle: 0 °~ 70 ° ■ Working temperature: -20 ℃~ +50 ℃ ■ Fits standard 7/8 inches(22.2mm) handle bars ■ Cable length is approximately 59 inches (1.5m) ■ Quantity: 2 pcs (1 Twist throttle grip and 1 normal grip (matching thumb grip) ) ■ Electric Bike scooter twist throttle accelerator with power display, 5 led battery indicator. Throttle Wiring Diagram: Throttle Connects to Controller Description Red Red Voltage 4.3 to 5.0 Volts Blue Black or Yellow Ground Green Green, Blue or White Speed Adjusting Signal (0.8 to 4.3 Volts) Yellow Power positive Power display Controller Wires Interface Definition: ■ Battery: Thick Black (Power Negative) / Thick Red (Power Positive) ■ Motor: Thick White (Motor Negative) / Thick Blue (Motor Positive) ■ Ignition Switch: Thin Red(VCC)/Thin Blue ■ Indicator: Thin red (Indicator power output) / thin black (indicator negative) ■ Brake: thin yellow (Brake signal)/ thin black (Negative Power) ■ Charge Port: Thin red (charge input power Positive) / thin black (Power negative) ■ Brake Light: Thin red (power Positive) / thin black (Power negative) ■ Speed governor: Thin blue (Speed handlebar Signal input) / Thin black (Negative Power) / thin red (5V Positive Power) Package Included: ■ 1 x 24V 250W Motor Brushed Controller ■ 1 x Throttle Grip (with one Normal Grip, 2 keys) Note: ■ Please allow minor error due to manual measurement. ■ The colors may be a little difference for the different monitor display.
